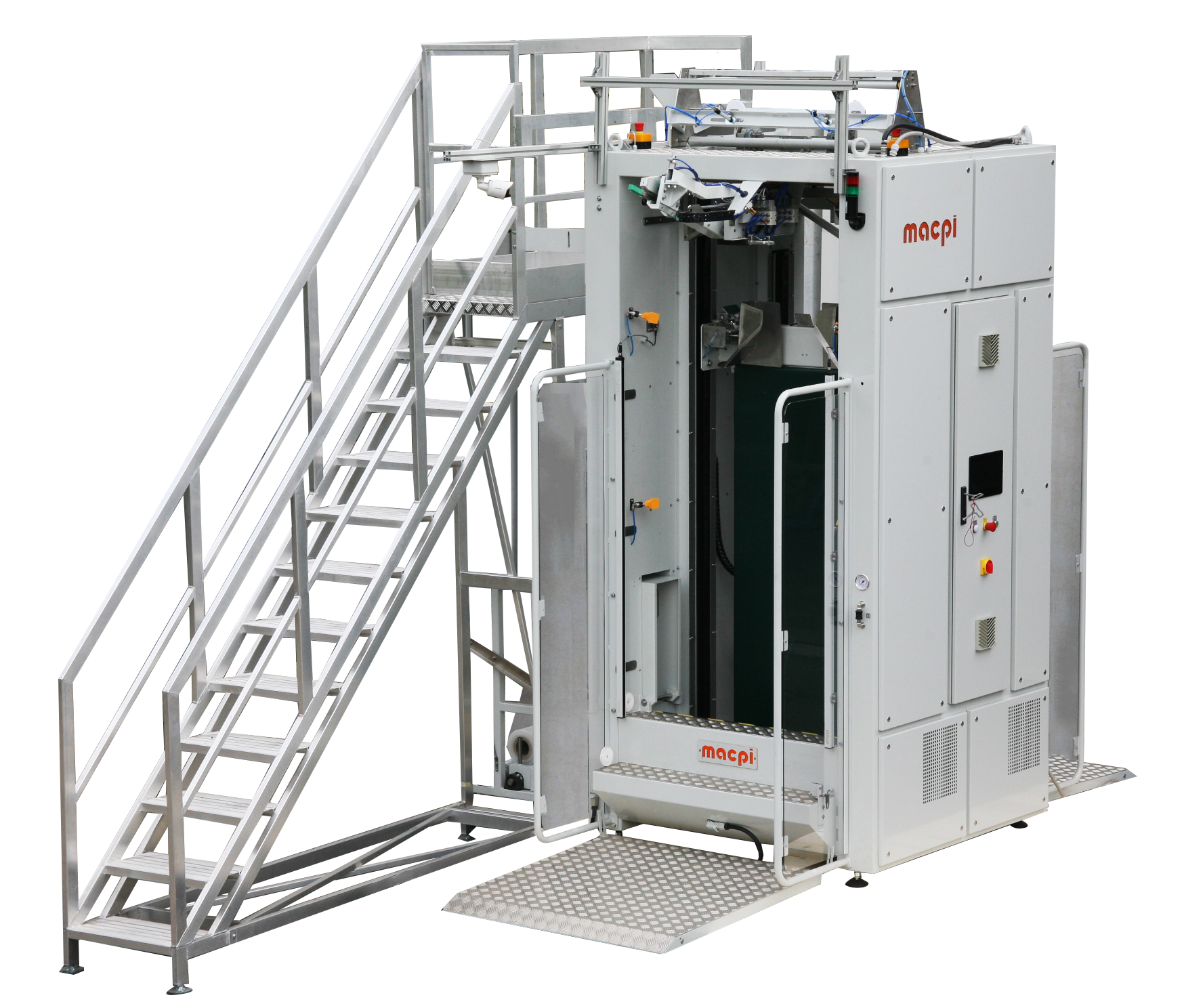

AUTOMATIC BAGGING MACHINE 1200 TWO-AXIS

Designed for single-garment bagging with a garment thickness of up to 150 mm.

The bagging machine is featuring:

- output capacity of up to 1200 garments per hour

- automatic separation, feeding and unloading of garments

- automatic top sealing, either straight or diagonal

- automatic unwinder for polyfi lm rolls up to 500 mm in diameter

- automatic garment length reading

- maximum garment length (including hanger): 2000 mm

- suitable for polyfi lm thicknesses from 9 to 40 microns

- maximum polyfi lm width: 700 mm

- left-side fi lm loading

- access ladder to facilitate fi lm replacement

- front and rear safety platforms

- 10” touch-screen programmer with 20 storable programs

- adjustable speed and acceleration

Connections

Compressed air supply: 8 bar

Electrical supply: 3+N 50/60Hz 400V

‍
